Style 378SE

Shukan Engineering

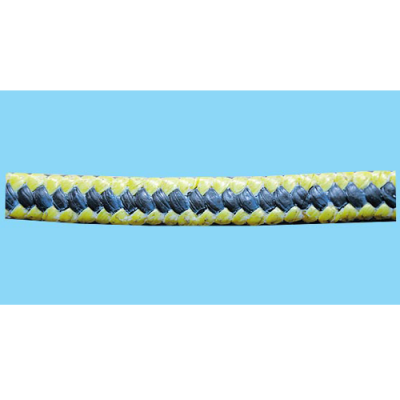

A unique braided packing made from Graphite bonded PTFE yarn with aramid corners.

Service Parameters
Maximum Service Temp. Compatible pH Range Pressure Rating Velocity
° C Range kg/cm² Mts/sec
-240 to +260 2-12 200 20


This packing is a combination of especially Graphite bonded PTFE Yarn and aramid yarn, impregnated with special mix. It has a high structure strength and density. The presence of Graphite bonded PTFE Yarn is a reason for excellent chemical stability to aggressive environments and good sealing properties. It is widely used in chemical and petrochemical plants, power engineering, cement, cellulose and sugar industries, shipbuilding, drinking water, abrasive solutions, oil products, oils, fats, acid and alkaline solutions, food solutions and pastes. etc.
